Our machinery

• Micro computer controlled system, high accuracy wire cutting stripping crimping.

• Wire cutting length: 45mm~9999mm

• Crimping length: 1.5~10mm

• Suitable wires: AWG18-30#

• Cutting speed: 1500~4000 Pcs/h

• Crimp force: Standard 2T (customized available)

• Micro computer controlled system, high accuracy wire cutting stripping crimping.

• Single machine is suitable for various terminals,

• Crimping die designed according to your requirement

• Max output: 4500 Pcs/h

• Computer terminals, AC/DC terminals, single grain terminal, joint terminal.

• Wire types: PVC, Teflon, Silica gel line, Glass fibre.

• Cross section Range 0.1 ~ 4.5mm^2

• Conduit Diameter: 6mm

• Cutting length: 1~9999mm

• Cutting tolerance: +/- (0.002XL) (L=Cutting length)

• Stripping Length: Head 0~35mm, Tail 0~15mm

• Middle stripping section: Max 11mm

• CapacitySpeed: 3000~8000 Pcs/h

Fully automatic Two end wire cutting stripping terminal crimping machine

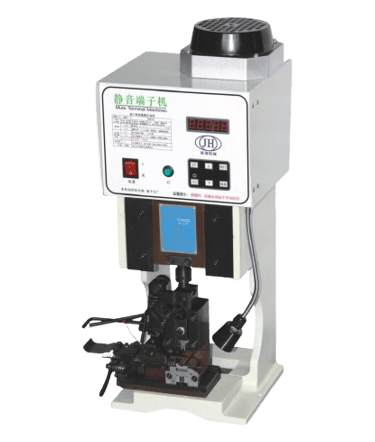

Semi-automatic wire seal terminal crimping machine

Fully automatic wire cutting stripping and twisting machine
